ATTO – Perista Pumps
Peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids.
SJ-1211
- Low Flow Rate Single-Channel
- Perista Pump SJ-1211II-L is a standard tube pump (low flow rate type)
AC-2110
- High Flow Rate Multi-Channel
- Perista pump with 1 to 4 channels available, flow rate ranges from 5 to 1500 mL/hr for each channel
WSP-3300
- Digital Quantum Pumps
- Improved stability, reproducibility, chemical resistance, flow rate, operability, and external control functions.
- Digital new peristaltic pump
- Full support for bio-production and research processes.
Key Features
- Versatile Flow Rates: Models range from low to high flow rates, supporting diverse fluid handling needs.
Available models
| Technical Specifications | |
|---|---|
| Motor | AC speed control motor |
| Channel | Single channel |
| vertical pumping height | 21 m max |
| Viscosity of transported fluid | 1.5 Pa · s (1,500 cP) max |
| Maximum pressure | Discharge 205.9 kPa (2.1 kg/cm²) / Suction 9.8 kPa (0.1 kg/cm²) |
| Environmental temperature | 0~40℃ |
| Accuracy of flow rate | Accuracy of repetition within ±1%, Voltage fluctuation (90-110V)±1% |
| Drive circuit | Constant rotation automatic control circuit |
| Power | AC 100/230V 50/60Hz 10VA |
| Dimension | 110 (W) x 150 (D) x 180 (H) mm |
| Weight | 2.0 kg |
| Components | SJ-1211 II-H Main body (Including Pump head (A) x 1, Cover plate x 1, Mounting bolt x 2) x 1, Power cable, Silicone tube (i.d. 1 mm x 1 m, i.d. 2 mm x 1 m, i.d. 3 mm x 1 m) |
| View the entire technical specifications in the brochure. |
Applications
- Pumping fluids/solutions in chromatography
- Pumping fermentation broth
- Pumping chemicals in recirculation experiment
- A wide range of applications, from laboratory to plant, etc
Visit the brochure to find out more about the application.
Key Features
- Standard Perista Pump.
- SJ-1211II-L flow rate: 0.7~100mL/h (φ3mm-1mm/φ4mm-2mm/φ5mm-3mm silicone tube)
| Technical Specifications | |
|---|---|
| Motor | AC speed control motor |
| Channel | Single channel |
| vertical pumping height | 21 m max |
| Viscosity of transported fluid | 1.5 Pa · s (1,500 cP) max |
| Maximum pressure | Discharge 205.9 kPa (2.1 kg/cm²) / Suction 9.8 kPa (0.1 kg/cm²) |
| Environmental temperature | 0~40℃ |
| Accuracy of flow rate | Accuracy of repetition within ±1%, Voltage fluctuation (90-110V)±1% |
| Drive circuit | Constant rotation automatic control circuit |
| Power | AC 100/230V 50/60Hz 10VA |
| Dimension | 110 (W) x 150 (D) x 180 (H) mm |
| Weight | 2.0 kg |
| Components | SJ-1211 II-H Main body (Including Pump head (A) x 1, Cover plate x 1, Mounting bolt x 2) x 1, Power cable, Silicone tube (i.d. 1 mm x 1 m, i.d. 2 mm x 1 m, i.d. 3 mm x 1 m) |
| View the entire technical specifications in the brochure. |
Applications
- Pumping fluids/solutions in chromatography
- Pumping fermentation broth
- Pumping chemicals in recirculation experiment
- A wide range of applications, from laboratory to plant, etc
Visit the brochure to find out more about the application.
Key Features
- Standard Perista Pump.
- SJ-1211II-H flow rate: 7~700mL/h (φ3mm-1mm/φ4mm-2mm/φ5mm-3mm silicone tube)
| Technical Specifications | ||
|---|---|---|
| Flow rate | i.d. 2 mm, o.d. 4 mm: 0.01 – 13 mL/min id. 4 mm, o.d. 6 mm: 0.01 – 35 mL/min | |
| Flow rate accuracy | Accuracy of repitition: Setting value ‡ 0.07% (30) | |
| Flow stability | ‡ 1%/h (After stabilization of an i.d. 2 mm, o.d. 4 mm tube) | |
| Channels | 3 channels | |
| Tube life | More than 2 weeks (continuous use) | |
| Compression plate | Tube thickness | for 1 mm |
| Materials | SUS304 • AL • POM | |
| Pressure | When using olefin tubing, maximum 3.5 kg (0.35 MPa) | |
| Usage environment | Temperature | 4 ~ 40°C |
| Humidity | No condensation | |
| Pollution degree | Pollution degree 2 | |
| Materials | AL • SUS • SPCC • POM | |
| Power | AC 100 – 240V 50/60Hz, 50W | |
| Dimensions • Weight | 130 (W) × 260 (D) × 135 (H) mm, 5 kg | |
| View the entire technical specifications in the brochure. | ||
Applications
- Improved stability, reproducibility, chemical resistance, flow rate, operability, and external control functions
- Digital new peristaltic pump
- Full support for bio-production and research processes
Visit the brochure to find out more about the application.
Key Features
- Metal non-contact
BioSafe aseptic, contamination-free, sanitary, and clean liquid feed
- Achieves “High Flow Accuracy” through:
“Quantitative flow stability”
“High flow reproducibility”
- Low pulsation with the “12-roller rotating roller system”
- Includes “PeristaQ dedicated standard tube”
- Easy operation and settings with “Touch Panel Operation”
- Enhanced productivity with an external control system

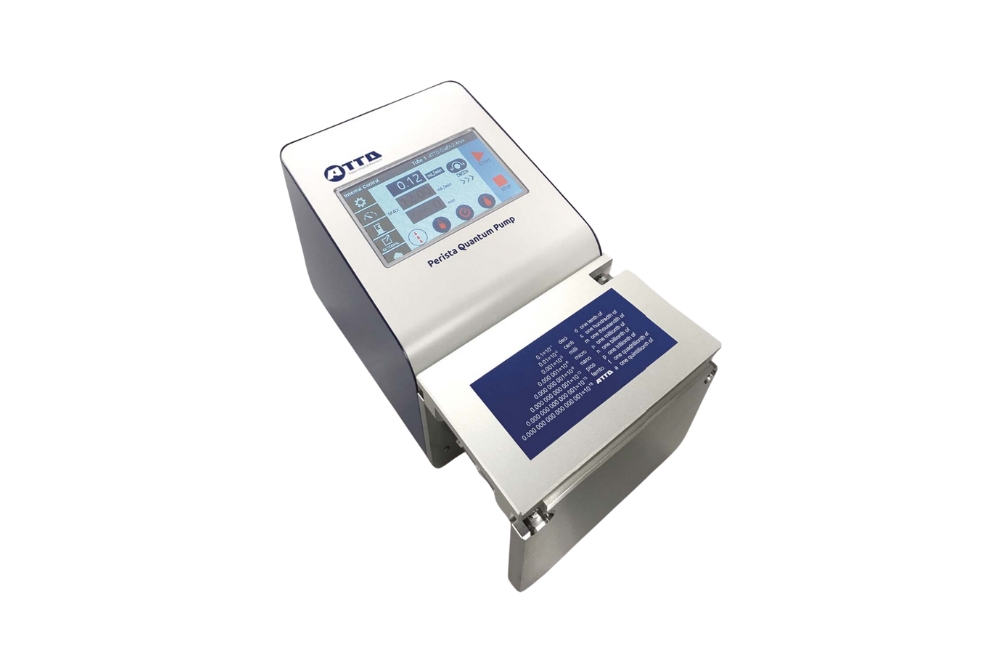

ATTO – Perista Pumps WSP-3300
Digital New Peristaltic Pump: Improved stability, reproducibility, chemical resistance, flow rate, operability, and external control functions.
Key Industries
- Biopharmaceutical and Biotechnology
- Education & Academics
- Medical
- Pharmaceutical
ATTO Corporation is a scientific instrument developer and manufacturer of protein/nucleic acid research. Long been providing more than 60 years…
