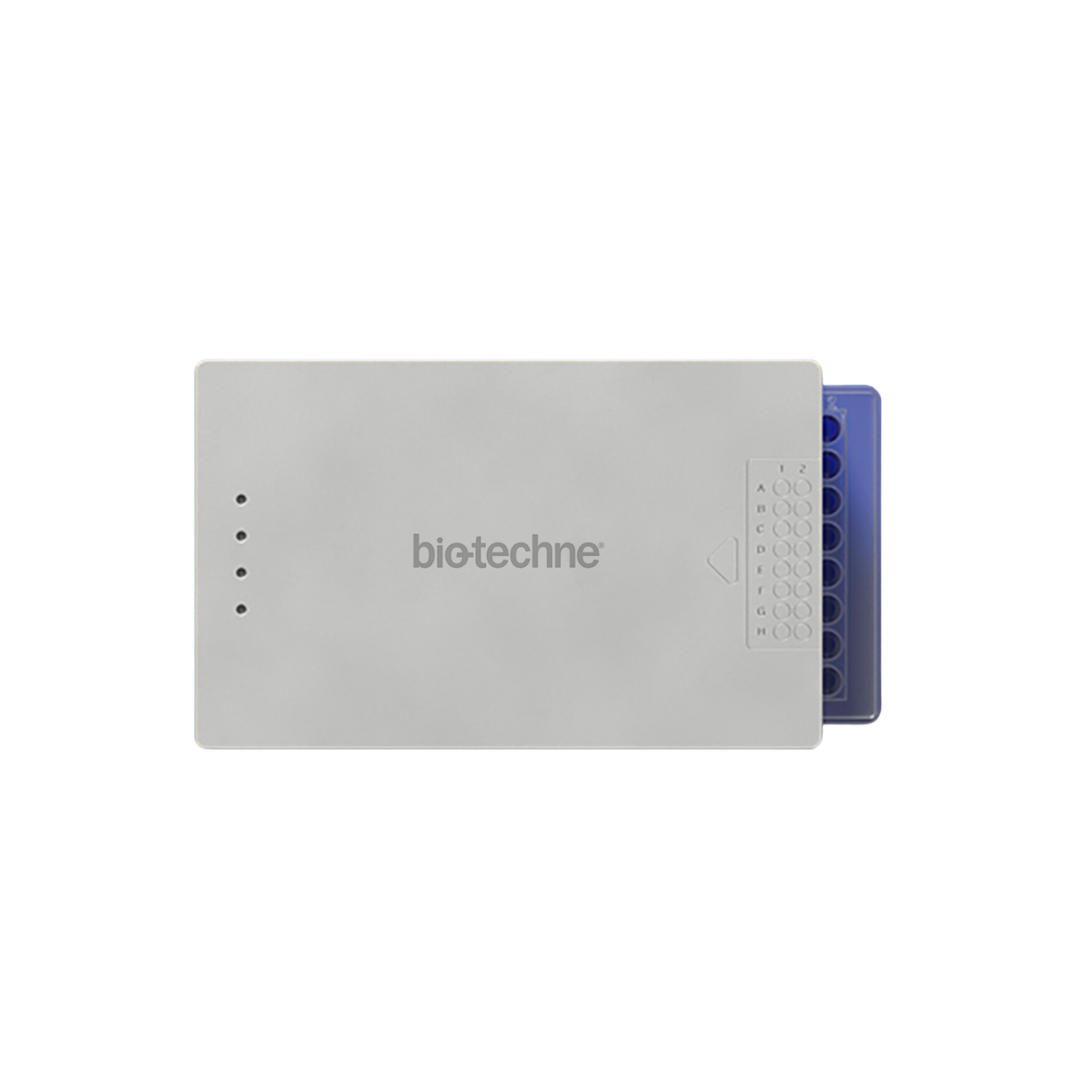

Bio-techne – Simple Reader™ Compact ELISA Plate Reader
The Simple Reader is an absorbance-based measuring device, i. e. a measuring instrument, with which the absorbance values of a 96-well microtiter plate can be read, recorded and provided for further processing.
The Simple Reader is a solid-state microplate reader and has 96 detection units, allowing measurement without a scanning mechanism.
Technical Specifications
| Dimensions | 9.6 x 15.4 x 5.5 cm (W x L x H) |
| Weight | 900 g |
| Power Supply | USB connection 5 V |
| Power Consumption | 2.5 Watts |
| Operating Systems | Microsoft Windows, macOS |
| Measurement Modes | Endpoint Kinetic |
| Evaluation Methods | Quantitative Qualitative |
| Regression Methods | Point-to-Point, Linear, Four Parameter Logistic (4PL), Five Parameter Logistic (5PL) |
| Export Formats | PDF, CSV |
Key Features
- Reproducible: Ensures precise control over sample loading, incubations, and washes, eliminating inconsistencies and user-dependent variability in traditional Westerns.
- 4 LED Light Sources: 450 nm, 490 nm, 540 nm, 595 nm
- 96 Detection Units: Robust, reliable results every time.
- High throughput: With her 13 and 25 sample capillary cartridges, Jess provides high throughput with minimal hands-on time. Utilize her fluorescent capabilities to multiplex proteins for even greater efficiency.
- Fast: Load your sample, antibodies, and reagents, press start, and in just 3 hours of hands-free runtime.
- Quantitative: Use the lane view to compare band intensity or perform detailed quantitative analysis of protein size and concentration, easily creating standard curves for precise quantification.
