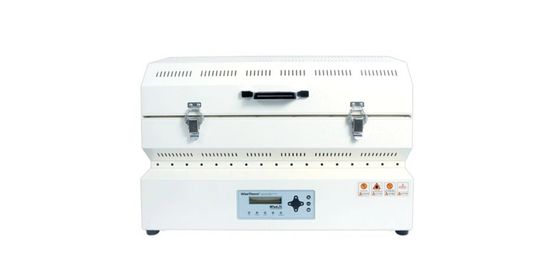

DAIHAN – Programmable Tube Furnaces – FT-series
The DAIHAN Programmable Tube Furnaces FT-series, the embedded heating elements-type, can reach maximum temperature up to 1000℃ with digital PID programmable control in a short time.
The products are built with ceramic fiber, 1 or 3-Heating Zone, and a wide range of tube sizes from Φ3 to Φ14cm.
Technical Specifications
| Heating zone | 1 – 3 |
| Available tube size | Φ3 – Φ14 cm |
|---|---|
| Heating power | 1.4 – 4.6 kW |
| Required time to be reached 800℃ | 17 – 25 min |
| Controller | 1×Programmable PID controller: 3 patterns 16 segments |
Key Features
Programmable Tube Furnaces
- Digital PID programmable controller: 3 patterns with 16 segments
- Designed for ash-determinations, horizontal application, protective gas atmosphere
- User’s self-compensation function for temperature (±50℃)
- Programmable timer : 99 hr 59 min
- Ceramic fiber embeded heating elements
- Avialable various size tubes, without working tube
- Resolution : 1℃, 1min
- PL(Product Liability) Insurance
Key Industries
- Chemical
- Mining & Minerals
