DAIHAN – Hotplates
DAIHAN offers 3 different models of Hotplates: MaXtir™ 500H Hi-Temp.(500℃) Digital Hotplates, Large Digital Hotplate HP-LP and Premium Hotplate HP-20A and HP-30A. Click below to see the details.
Daihan Hotplates are designed for precise and efficient heating in laboratory settings. They offer a range of models to accommodate various experimental requirements.
Key Features
- Accurate Temperature Control: Equipped with advanced temperature regulation systems, these hotplates ensure consistent and precise heating, essential for sensitive laboratory procedures.
- Durable Construction: Built with high-quality materials, Daihan hotplates are designed to withstand rigorous laboratory use, providing long-lasting performance and reliability.
- User-Friendly Interface: Featuring intuitive controls and clear displays, these hotplates allow for easy operation and monitoring, enhancing user convenience and safety.
Available Models
Technical Specifications
| MaXtir™ Digital Hotplate | |
| Material | Body: powder coated aluminum Plate: solid ceramic glass plate, 200×200 mm |
| Stirring capacity | Max. 20 Liter |
| Temperature range and accuracy | Max. 500℃ ±0.3℃ at set temperature |
| Temperature resolution | 0.1℃ Display 0.5℃ Control |
| Heating power / consumption | 850 W |
| Display | Digital LCD with back-light function |
| Controller | Digital feedback controller with Jog-Dial (turn+push) and touch button. |
| Hot top indicator | LED lamp |
| Permissible Temperature and RH % | Ambient +5 ~ 50℃, 85% RH |
| Dimensions / Weight | 205×345×h135 mm / 3.3kg |
Key Features
- High-quality ceramic glass plate and high-performance heater for maximum temperature 500℃
- Superior heat-/ acid-/ chemical-resistant plate
- Easy-to-clean plate
- Hot-top indicator on the control panel ensures user safety from a burn
- High-quality insulation (BTU) ensures user safety during operation at high temperature.
- Brushless shade motor used: strong and precise stirring, minimized noise, long life-time
- Two independent internal temperature sensor: accurate temperature control and over temperature protection.
- New Jog-Dial and capacitive touch button for user convenience.
Technical Specifications
| Large Hotplate | |
| Controller | Built-in digital PID controller or digital remote controller |
| Plate surface | Ceramic |
| Plate size | 310×620 mm |
| Temperature range and accuracy | Max. 350℃ ±0.3℃ at Set Temperature |
| Temperature resolution | 0.1 ℃ Display 0.5 ℃ Control |
| Heating power / consumption | 2 kW |
| Display | Digital LCD with back-light function |
| Permissible Temperature and RH % | ambient +5 ~ 50℃, 85% RH |
| Dimensions / Weight | 670×360 ×h150 mm / 16 kg |
Key Features
- Superior temperature uniformity: Less than 10% on the plate at ambient temperature
- Patented Jog-Shuttle control system and back-light LCD
- CE certified
- PL(Product Liability) insurance
- Excellent for sample drying and most general lab heating applications
- Large heating area: Ideal for TLC plate heating and surface heating in electronic industries
- The remote controller cable helps to place the controller away from the hotplate up to 1.5m distance
Technical Specifications

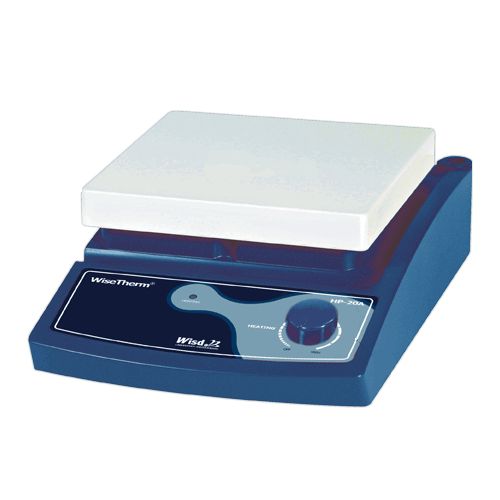

| Premium Hotplate | |
| Material | Body: Powder coated aluminum (HP-20A) / Powder coated steel (HP-30A) Plate: Ceramic coated aluminum (chemical / acid resistance, easy to clean) |
| Plate size | 180×180 mm Plate-type (HP-20A) 260×260 mm Plate-type (HP- 30A) |
| Temperature range and uniformity | Max. 380℃ Difference 10% less |
| Controller | Superior linearity PWM controller |
| Permissible Temperature and RH % | Ambient +5 ~ 50℃, 85% RH |
Key Features
- With certificate and traceability
- Excellent for sample drying and most general lab heating applications
- Superior temperature uniformity: Less than 10% on the plate at ambient temperature
- CE certified
- PL(Product Liability) insurance
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Education & Academics
- Food & Beverage
- Medical
- Pharmaceutical
- Semiconductor, Solar & Electronics
