DAIHAN – Magnetic Stirrers
DAIHAN magnetic stirrer is a device widely used in laboratories and consists of a rotating magnet or a stationary electromagnet that creates a rotating magnetic field. Ideal for Heat-sensitive Procedures such as Microbiology and Biochemistry Applications. Mixing for Chemical, Laboratory, Pharmaceutical Materials.
Description
- Smart design of body made by Aluminum Die-Casting (MS, MSH models)
- Digital LCD display for RPM, power bar graph and status
- User’s self-compensation function: to control difference between real temp. and indicated temp (20.0℃) (MSH model)
- Patented Jog-Shuttle control system and digital LCD with back-light (Digital model)
Key Features
- Digital speed LED display
- Electronically controlled motor for more capacity
- Includes 1ea×3cm stirring bar
- Can be used with up to 5cm bar
Available Models
MaXtir™ 500S Hi-performance Digital Magnetic Stirrers
Shade Motor, Max. 80~1,500 rpm with Solid Ceramic Glass Plate, 200×200mm, Touch-button Controller, Digital Feedback Control, Precise Speed Control, Max 20Lit
Premium Magnetic Stirrer, “MS-A”, 180×180mm Ceramic-Coated Plate
with Certi. and Traceability with PWM Control System, Precise Speed Control, Ceramic Coated Al-Plate, up to 1,500 rpm, Max. 20 Lit.

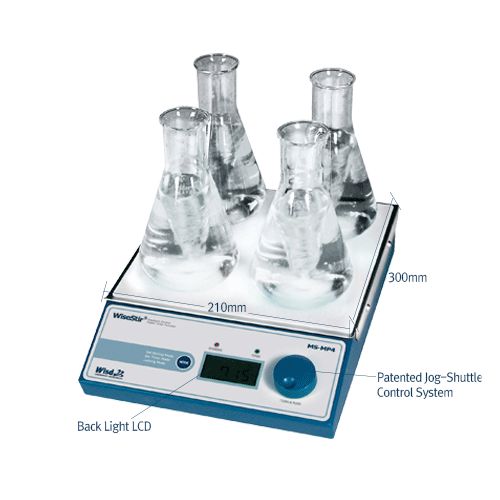

Digital Multi-point Magnetic Stirrers, “MS-MP”
4-/8- Points, Max. 500ml per Point with Digital Feedback Control System, Digital LCD Display, Synchronous Operation, 80~1,200 rpm, with Certi. and Traceability
120×120 Mini Hi-Tech Digital Magnetic Stirrer “MagStirTM MGS12”, max. 2,500rpm with tempered glass plate and PP housing, BLDC-motor, digital LED display, waterproof, Max. 2Lit.(H2O)
- High performance brushless DC-motor : high efficiency stirring performance and precise speed control (minimize RPM fluctuation), low maintenance cost.
- Outstanding chemical resistance due to tempered glass plate(120×120mm) and PP housing
- Higher speed range from 100 ~ 2,500 rpm
- Waterproof structure
- With certificate & traceability : controlled by serial number, certificate, delivery-information, and traceable data base system
Key Features
- Digital speed LED display
- Electronically controlled motor for more capacity
- Includes 1ea×3cm stirring bar
- Can be used with up to 5cm bar
Technical Specifications
| Stirring capacity | Max. 2Lit. (H2O) |
| Motor rating (input/output) | 6 / 3W |
| Speed Range & Motor | 100~2,500rpm, high performance brushless DC-motor |
| Controller & display | Digital PID control with jog-knob & digital LED display |
| Stirring bar | 3cm bar-included, usable: up to 5cm bar |
| Material | Tempered glass plate (5mm thick) & PP housing |
| Dimension | Plate: 120×120mm, body: 136×136×h50.5mm |
| Weight | 0.5kg |
| Electrical reqts. | DC 12V, with AC 230V Adapter, 50/60Hz |

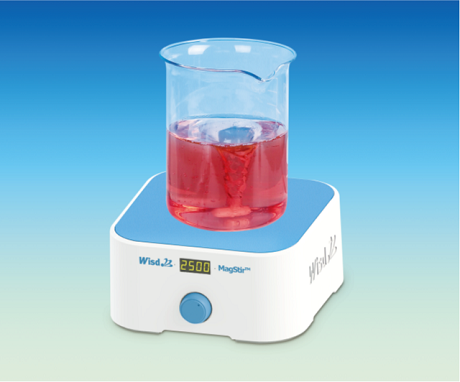

Compact 180×180 Digital Magnetic Stirrer “MagStirTM MGS18”, max. 2,500rpm with tempered glass plate and PP housing, BLDC-motor, digital LED display, waterproof, max. 5Lit.(H2O)
- High performance brushless DC-motor : high efficiency stirring performance and precise speed control (minimize RPM fluctuation), low maintenance cost.
- Outstanding chemical resistance due to tempered glass plate (180×180mm) and PP housing
- Higher speed range from 100 ~ 2,500 rpm
- Waterproof structure
- With certificate & traceability : controlled by serial number, certificate, delivery-information, and traceable data base system
Key Features
- Digital speed LED display
- Electronically controlled motor for more capacity
- Includes 1ea×3cm stirring bar
- Can be used with up to 5cm bar
Technical Specifications
| Stirring capacity | Max. 5 Lit. (H2O) |
| Motor rating (input/output) | 12 / 6W |
| Speed range & motor | 100~2,500rpm, high performance brushless DC-motor |
| Controller & display | Digital PID control with jog-knob & digital LED display |
| Stirring bar | 3cm bar-included, usable: up to 5cm bar |
| Material | Tempered glass plate (5mm thick) & PP housing |
| Dimension | Plate: 180×180mm, body: 193×193×h80.5mm |
| Weight | 1.6kg |
| Electrical reqts. | DC 12V, with AC 230V adapter, 50/60Hz |
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Education & Academics
- Food & Beverage
- Medical
- Pharmaceutical
- Semiconductor, Solar & Electronics
Additional information
| Applications | General lab equipment |
|---|---|
| Markets | Global, Philippines, Singapore |
| Solutions | Shaking & Mixing, Stirring |
