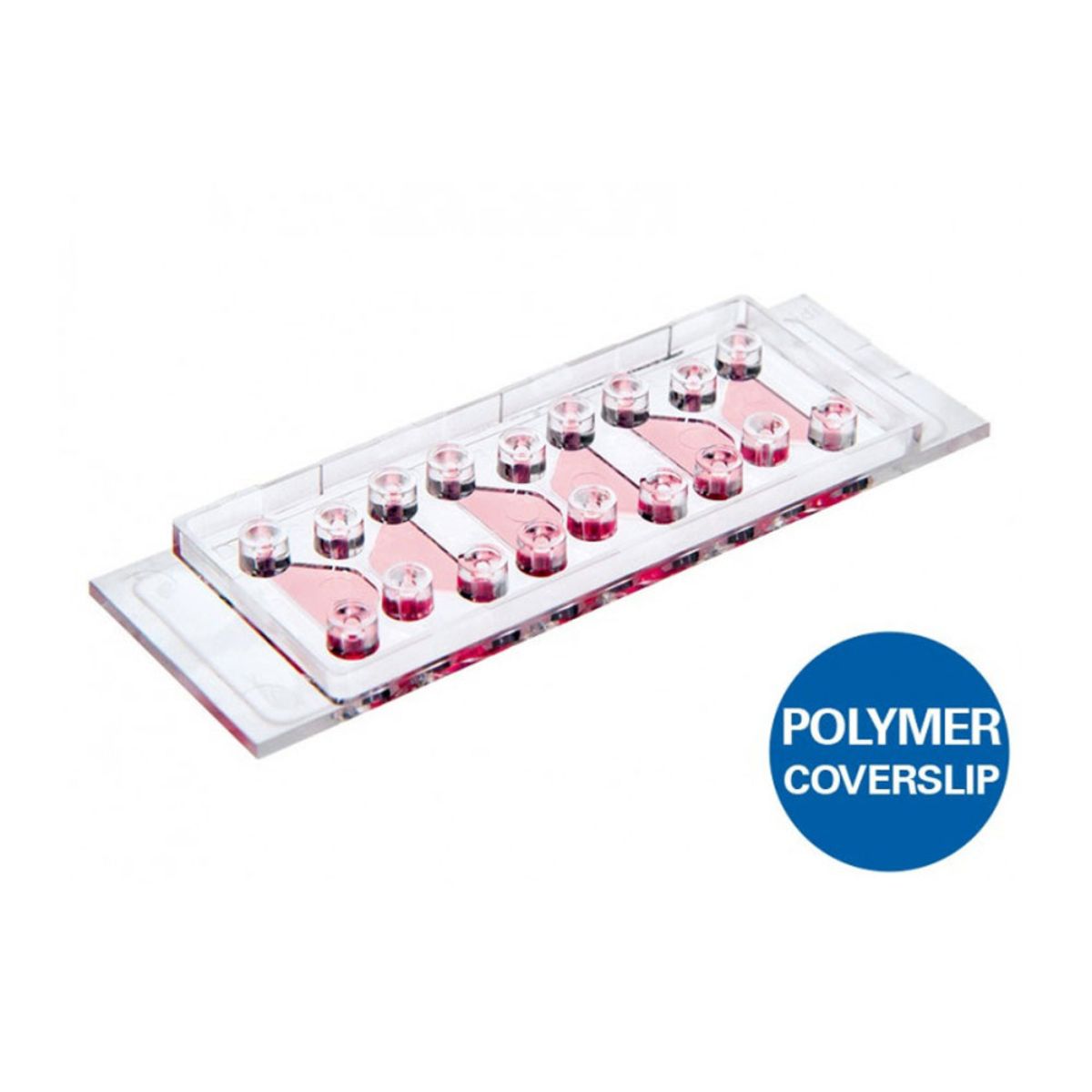

Ibidi – Labware – µ-Slide Chemotaxis
Investigate chemotaxis of fast or slow migrating adherent cells and non-adherent cells in 2D or 3D gel matrices
The ibidi µ-Slide Chemotaxis enables precise, live-cell imaging of chemotaxis with defined gradients. Its advanced microfluidic design ensures consistent conditions, making it ideal for research in cell migration, immunology, and cancer studies. Compatible with various microscopy techniques for high-resolution imaging.
Key Features
- Investigate chemotaxis of fast or slow migrating adherent cells and non-adherent cells in 2D or 3D gel matrices
- Real-time chemotaxis measurement in real-time in a 2D or 3D environment
- Stable chemotactic gradients for long-term experiments
- Reproducible results with reliable and user-independent data
Applications
- 2D and 3D chemotaxis assays with fast or slow migrating cells
- Live cell imaging using inverted microscopy
- Chemotaxis of neutrophils, lymphocytes, and monocytes
- 3D chemotaxis of leukocytes or cancer cells in an ECM-like matrix
- Invasion assays of tumour cells in Matrigel™
- Chemotaxis measurements of adherent and non-adherent cells
Technical Specifications
| Outer dimensions (w x l) | 25.5 x 75.5 mm² |
| Chemotaxis chambers on slide | 3 |
|---|---|
| Volume per chamber | 120 µl |
| Observation area | 2×1 mm² |
| Coating area per chamber | Coating area per chamber |
| – When coating full chamber | – When coating full chamber |
| – When coating observation area only | |
| 3.50 cm2 | 3.50 cm2 |
| 0.27 cm2 | 0.27 cm2 |
| Distance between chambers | 18.5 mm |
| Total height with plugs | 12 mm |
| Volume chemoattractant | 30 µl |
| Bottom | ibidi Polymer Coverslip |
Technical Features
- Chamber geometry optimized for cells in 2D and 3D matrices
- Defined linear gradient with long-term stability
- Homogeneous cell distribution at the experimental starting point
- 3 chambers on one slide for parallel assays
- Ideal for collagen gels, hydrogels, Matrigel™, or similar aqueous gels
- Ready to use, i.e., no assembly required
- Lettered and numbered chambers and reservoirs
