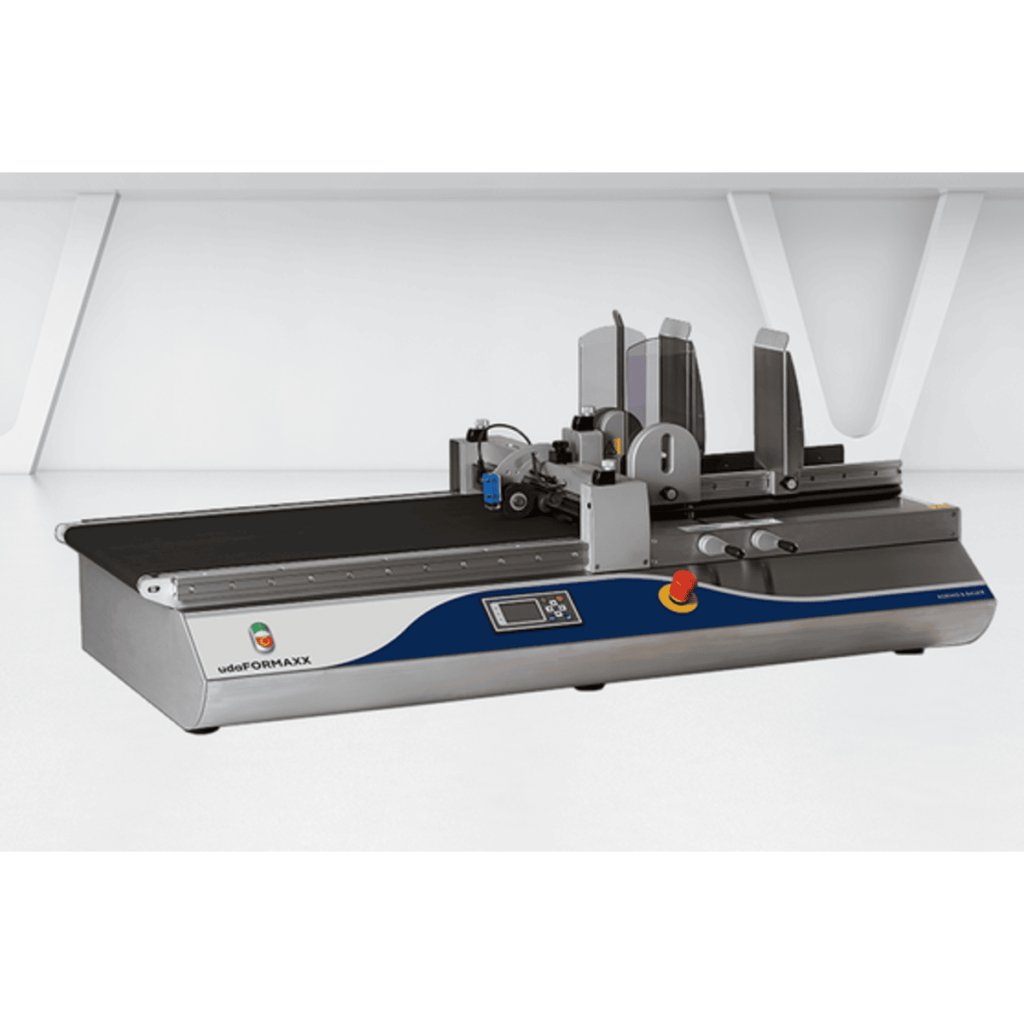

Koenig & Bauer – Offline-solutions – udaFORMAXX
Offline coding with our own stack-to-stack processing is ideal for applying variable data flexibly and precisely in small and medium batch sizes outside the production line.
The udaFORMAXX can be fitted with a variety of coding systems for printing on flat folding cartons, sleeves, cardboard blanks and labels. The Koenig & Bauer Coding portfolio offers you suitable models for all applications, meeting your individual coding standards.
Available Models
Compact, stand alone system which integrates with all the KBA-Metronic coding devices, for the offline coding.
Possible application fields include the application of variable dates, best-before-date, consecutive numbering, price and content information, barcodes, logos, addressing, personalization and small-scale printing jobs.
Key Features
- Simple and reproducible settings.
- Ease of use and high reliability.
- Quick format change.
- Just-in-time printing for small and medium batch sizes and customization of standard packaging.
- Can be combined with all coding systems.
- Compact stand alone system.
Technical Specifications
| Continuous | Yes |
| Intermittent | No |
| Output max | 750 pcs./min |
| Speed | 9 – 90 m/min |
| Controller with graphic display | Standard |
| Parameterisation with a hand-held scanner | Option (RS 232) |
| Control/parameterisation via PC/PLC | Option (RS 232) |
| Dimensions (L x W x H) | 1300 mm x 710 mm x 560 mm |
| Area for integration of marking/reading devices | 560 mm |
| Weight | 115 kg |
| Sound level | 66 db |
| Material – Substrate Dimensions min. | 64 x 45 mm, optional 32 x 45 |
| Material – Substrate Dimensions max. | 372 x 430 mm, optional 372 x 500 mm |
| Material strength min. | 100 g/m² |
| Material thickness max. | 5.0 mm |
Compact, stand alone system which integrates with all the KBA-Metronic coding devices, for the offline coding.
Possible application fields include the application of variable dates, best-before-date, consecutive numbering, price and content information, barcodes, logos, addressing, personalization and small-scale printing jobs.
Key Features
- Simple and reproducible settings.
- Ease of use and high reliability.
- Quick format change.
- Just-in-time printing for small and medium batch sizes and customization of standard packaging.
- Can be combined with all coding systems.
- Compact stand alone system.
Technical Specifications
| Continuous | Yes |
| Intermittent | Yes |
| Output max | 750 pcs./min |
| Speed | 9 – 90 m/min |
| Controller with graphic display | Standard |
| Parameterisation with a hand-held scanner | Option (RS 232) |
| Control/parameterisation via PC/PLC | Option (RS 232) |
| Dimensions (L x W x H) | 1300 mm x 710 mm x 520 mm |
| Area for integration of marking/reading devices | 560 mm |
| Weight | 115 kg |
| Sound level | 66 db |
| Material – Substrate Dimensions min. | 30 x 60 mm |
| Material – Substrate Dimensions max. | 450 x 500 mm |
| Material strength min. | 100 g/m² |
| Material thickness max. | 7.5 mm |
Compact, stand alone system which integrates with all the KBA-Metronic coding devices, for the offline coding.
Possible application fields include the application of variable dates, best-before-date, consecutive numbering, price and content information, barcodes, logos, addressing, personalization and small-scale printing jobs.
Key Features
- Simple and reproducible settings.
- Ease of use and high reliability.
- Quick format change.
- Just-in-time printing for small and medium batch sizes and customization of standard packaging.
- Can be combined with all coding systems.
- Compact stand alone system.
Technical Specifications
| Continuous | Yes |
| Intermittent | No |
| Output max | 750 pcs./min |
| Speed | 9 – 90 m/min |
| Controller with graphic display | Standard |
| Parameterisation with a hand-held scanner | Option (RS 232) |
| Control/parameterisation via PC/PLC | Option (RS 232) |
| Dimensions (L x W x H) | 1875 mm x 1200 mm x 560 mm |
| Area for integration of marking/reading devices | 1115 mm |
| Weight | 133 kg |
| Sound level | 66 db |
| Material – Substrate Dimensions min. | 64 x 45 mm, optional 32 x 45 mm |
| Material – Substrate Dimensions max. | 372 x 430 mm, optional 372 x 500 mm |
| Material strength min. | 100 g/m² |
| Material thickness max. | 5 mm |
Key Industries
- Automotive
- Cosmetics & Personal Care
- Food and Beverage
- Machinery and Manufacturing
- Pharmaceutical
Brand
Koenig & Bauer Coding specializes in the development, design, production and marketing of printing, coding and marking technology, the company is a total coding solutions provider and is at the forefront of the latest market developments. Its coding systems many of which are suitable for industrial printing, barcode printing, product marking and product coding can be found in many industrial application fields and are adopted by many global leaders. Excellent product quality and the excellent standard of extensive services make the company a partner which industrial customers can depend on. The entire company has been certified to DIN EN ISO 9001:2000.
