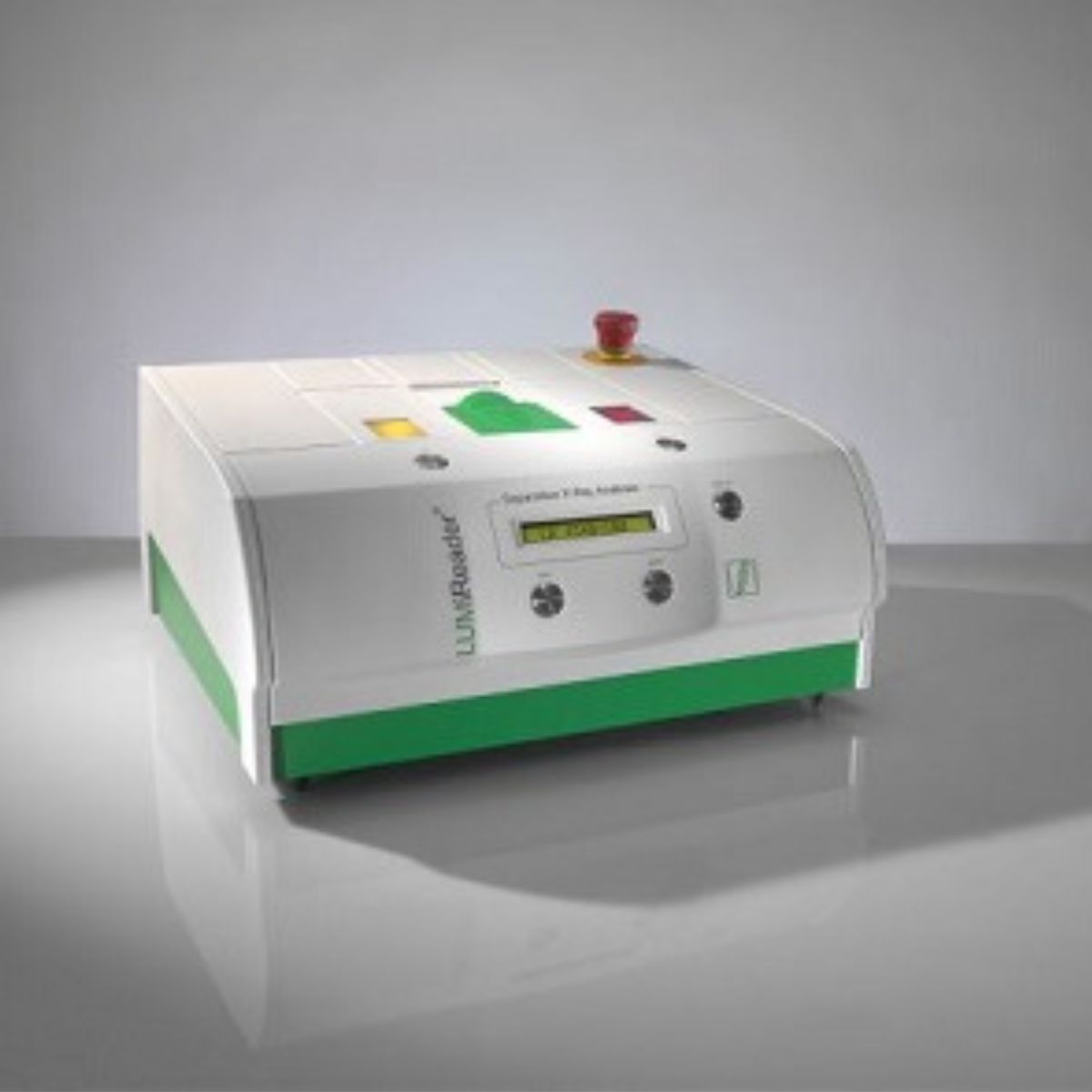

LUM GmbH – Material Characterization – LUMiReader X-Ray

Description

For the first time ever, illuminate your sample instantaneously from top to bottom. Solve your most challenging dispersion problems with complete insight. Go places light cannot.

Technical Specifications

Measurement principle	monoenergetic X-ray attenuation
Phase separation	high concentrated dispersions (transparent or opaque)
In situ sediment analysis	3 s to unlimited
Stability analysis	from seconds to days or weeks
Consolidation measurement	also in combination with LUMiFuge & LUMiSizer
Conformity	ISO/TR 13097; ISO/TR 18811; ISO 18747-1; CFR 21 Part 11
Samples	suspensions, Emulsions, Suspo-Emulsions, Sludges, Slurries, Foams & Powders
Channels	1 sample
Volume	0.3 ml to 1.6 ml
Concentration	Up to 100 Vol%
Particle	any shape, from nano to microscale, no density restriction
Source	Monoenergetic X-ray, 17.48 keV, max 20 W at 40 kV, air cooled
Monochromator	Graphite
Disturbance free	No moving parts
Dimensions (WxHxD), Weight	47 cm x 24 cm x 44 cm, 25 kg
Power supply	24 V, 220 W, Adapter (100 V to 240 V) included
Safety	different materials, optical path 1 mm to 10 mm
Radiation control requirements	none; instrument can be used anywhere

Key Features

• In-situ analysis of transparent as well as opaque dispersions
• High resolution of phase separation of multicomponent systems
• No dilution of emulsions or suspensions
• Detect concentration gradients within phases and sediment
• Signal does not depend on particle shape
• Determine mean and space resolved packing sediment densities
• See/understand complex dispersion behaviour
• Use any continuous phase of dispersing agent
• ISO/TR 13097
• ISO/TR 18811:2018
• ISO 13317
• ASTM D7827
• ISO/TR 13097
• CFR 21 Part 11
