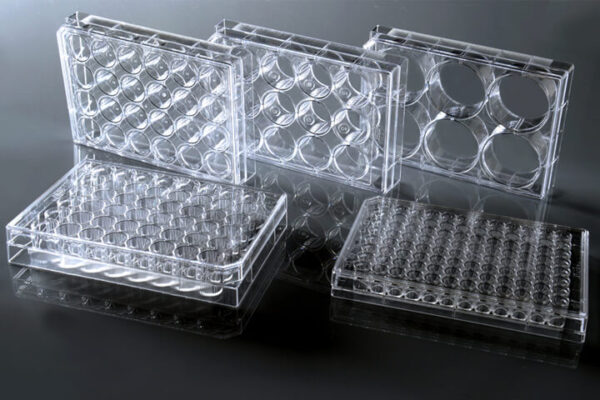

NEST – Cell Biology – Cell Culture Plates
NEST cell culture plates have round edges for better handling. Low profile and low-evaporation lid design assures uniform growth. Both tissue culture treated and non-treated surfaces are available. Non-treated growth surface is more hydrophobic than tissue culture surface and is similar to the surface of a bacteriological Petri dish. Small feet on the bottom corners of each plate eliminate scraping of the microscope lens.
- Sterilized by E-beam
- High clarity, 100% virgin polystyrene
- Vacuum Plasma tissue culture treatment
- Clear lot number for batch traceability
- Peel-to-open, individually wrapped
- Markings of well coordinates available for 12, 24, 48 96 and 384 well plates
- Non-Pyrogenic, DNase/RNase Free
- The package box of Nest cell culture plates can be used as reservoirs
Technical Specifications
Treated plate | ||||||
Cat.No. | Spec (Well) | Cell Growth Area (cm²) | Rcommended Medium Vol. (mL) | Bottom | ||
703001 | 6 | 9.5 | 1.9-2.9 | Flat | 50 | |
712001 | 12 | 3.6 | 0.76-1.14 | Flat | 50 | |
702001 | 24 | 1.9 | 0.38-0.57 | Flat | 50 | |
748001 | 48 | 0.88 | 0.19-0.285 | Flat | 50 | |
701001 | 96 | 0.32 | 0.1-0.2 | Flat | 100 | |
701101 | 96 | 0.32 | 0.1-0.2 | U | 100 | |
701201 | 96 | 0.32 | 0.1-0.2 | V | 100 |
Non-treated plate | ||||||
Cat.No. | Spec (Well) | Cell Growth Area (cm²) | Rcommended Medium Vol. (mL) | Bottom | ||
703011 | 6 | 9.5 | 1.9-2.9 | Flat | 50 | |
712011 | 12 | 3.6 | 0.76-1.14 | Flat | 50 | |
702011 | 24 | 1.9 | 0.38-0.57 | Flat | 50 | |
701011 | 96 | 0.32 | 0.1-0.2 | Flat | 100 |
Excellent bottom uniformity
Special lid design ensures low evaporation
Frosted and noise-free bottom design for easy grip
Lot No. for traceability
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics and Personal Care
- Defense
- Die and Mould
- Education and Academics
- Electronics
- Energy
- Environmental
- Food and Beverage
- Luxury
- Machinery and Manufacturing
- Medical
- Mining and Minerals
- Oil and Gas
- Optical
- Paper and Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders and Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale and Retail
Brand
Found in 2009, Wuxi NEST Biotechnology is a worldwide manufacturer of plastic laboratory products. Decades of plastic-injection molding experience allows us to maintain the highest quality and performance standards expected by the hospitals, research institutions and indusrial/clinical laboraories that we serve, NEST is your best choice for laboratory consumables. NEST has launched over 200 plastic consumable products for cell culture, molecular bislogy, immunoassays, liquid handling and storage. NEST’s manufacturing site has been certified with an ISO 9001:2008 management system. Our sterilization procedures meet the ISO 11137:2006 and ISO 13485 standards.
