Thermo Fisher – Barnstead™ Lab Water Purification Systems – Type 3 Reverse Osmosis Water Systems
Improve functional and economical production of high-purity water with the Thermo Scientific™ Barnstead™ Water Purification System.
This modularly designed laboratory reverse osmosis system was specifically developed for functional and economical production of high-purity water.
Available Models

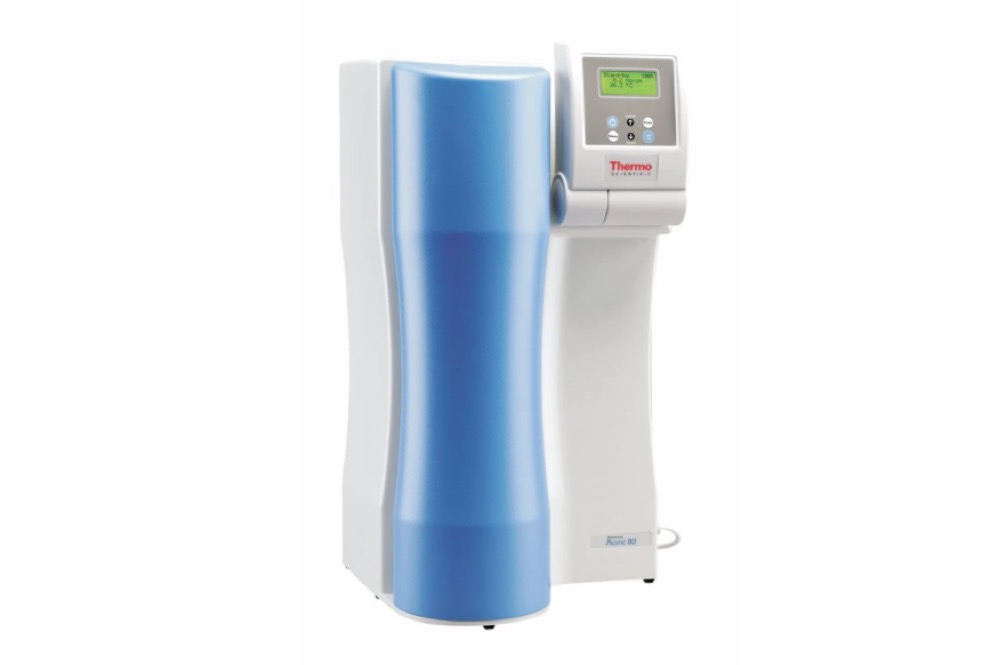

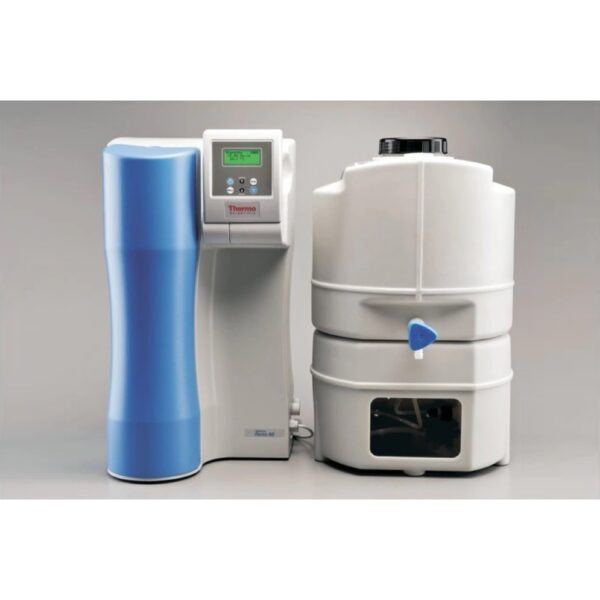

Improve functional and economical production of high-purity water with the Thermo Scientific™ Barnstead™ Pacific™ RO Water Purification System. This modularly designed laboratory reverse osmosis system was specifically developed for functional and economical production of high-purity water.
Key Features:
- Five system options with permeate flows of 3, 7, 12, or 20, or 40L/hr
- Space-saving design allows system to sit on the laboratory bench or be mounted on the wall
- Simple system upgrade accommodates future pure water capacity requirements
Reliable Operation:
- Microprocessor control offers automatic operation with continual monitoring of all important parameters
- Required filling level of the reservoir can be customized
- Automatic return to operating mode ensures recirculation during periods of standstill
Easy-To-Operate Clear Display:
- Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing
- Status of current operating mode clearly indicates ‘production’, ‘stand-by’ and ‘cleaning’ modes
- Reservoir fill-level shown as %
Integrated Feed Water Monitoring:
- Good quality feed water is a prerequisite for high purity water and extends cartridge service life
GLP-Compliant Documentation:
- Real-time clock records system errors and faults
- Ongoing data storage collects four weeks information displayed in clear text
- Operating system is code-protected to prevent unauthorized changes to system settings
- RS-232 interface with adjustable sender interval allows for customized timing of data transmission of measured values and faults to a PC or data printer
- Cell constant of 0.16 cm-1 ensures precise conductivity measurements

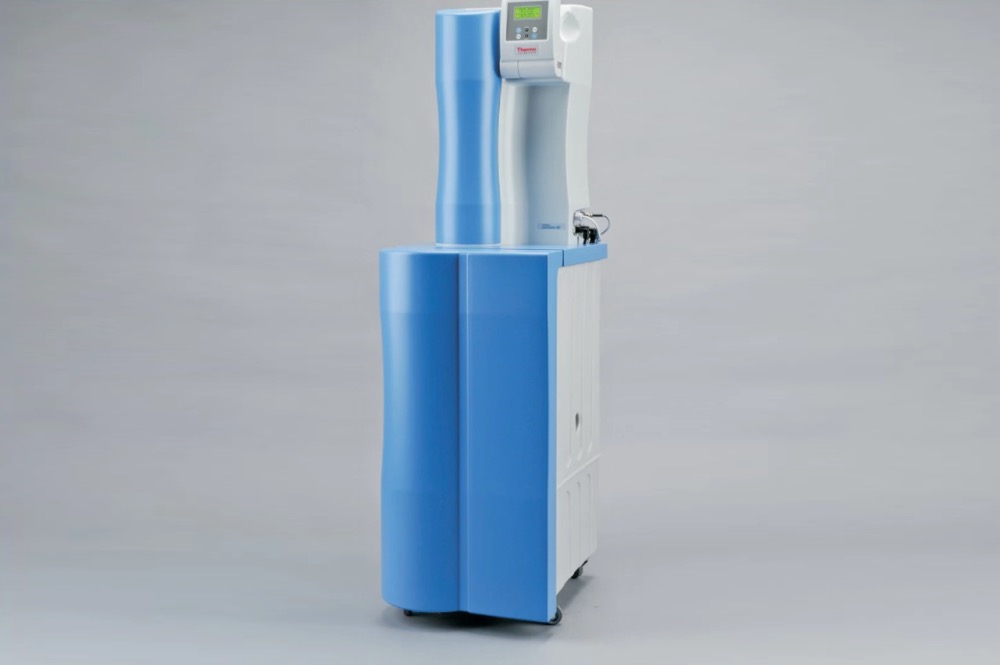

Convert tap water into reverse osmosis (RO) water with integrated 100L storage using the Thermo Scientific™ Barnstead™ LabTower™ RO Water Purification System, which allows the user to easily read parameters with an ultra-modern controller. Mounted on casters, this compact system is an ideal pure water supply for any laboratory. The system is well-suited as a feed water source for dishwashers, autoclaves and general laboratory use. Choose from two system options with permeate flows of 20, 49 or 60L/hr. Resistivity/conductivity is clearly displayed on a large back-lit control panel that tilts for optimum viewing.
Advanced Technology in a Mobile Design:
- An ultra-modern microprocessor control provides easy-to-read system parameters.
- Completely drainable integrated 100L high-purity water reservoir has a low-noise pressure booster as a standard component.
- Mounted on casters, the compact LabTower RO system is an ideal pure water supply for any laboratory.
- System is ideally suited as a feed water source for dishwashers, autoclaves and general laboratory use.
- A built-in pretreatment unit — consisting of a hardness stabilizer for protection of the reverse osmosis module from hardness formers and an activated carbon/5μm combi-cartridge — protects the system against free chlorine and particles, ensuring the long service life of downstream purification stages.
Compact and Mobile Design:
- System includes three system options with permeate flows of 20, 40 or 60L/hr.
- Stand-alone design with integrated 100L tank takes up ZERO bench space—casters allow for easy relocation.
- Systems can be upgraded later to accommodate growing water capacity demands.
Integrated 100L Reservoir:
- System stores 100L of RO water in a high-purity polyethylene PE opaque reservoir.
- Adjustable reservoir volume can be programmed for times of low demand—dispense from the reservoir to supply autoclaves, dishwashers, ultrapure water systems, etc.
Easy-To-Operate Clear Display:
- Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing.
- Status of current operating mode clearly indicating “production”, “stand-by”, “cleaning” or “disinfection” modes.
- Reservoir fill-level is shown as a percent.
- System parameters are code-protected to prevent accidental changes to set points.
