ATTO – Gel Documentation
High resolution 6M pixels monochrome CMOS camera applied with touch panel control system. Touch panel interface is reflecting ATTO original knowhow which is closing user-friendly for 30 years sales. Detecting by UV light source which DNA(EtBr) and detection CBB pattern with white flat LED light source.
Quick and easy imaging, documentation, and analysing DNA/RNA routinely in your lab. Visualize nucleic acid and protein gels, blots, and macroarrays.
Key Features
WSE-5300
- 6 Megapixels high-resolution CMOS camera Gel Documentation System
- Quick response touch panel system
- UV free for Hazards free from an experiment (optional)
WSE-5400
- Color CMOS camera
- Resolution: 2048 x 1536
- Gel View window
- Quick ready to use
- Simple operation for printing out (optional)
Technical Specifications
| Model | WSE-5300 | WSE-5400 | |
|---|---|---|---|
| Camera | High resolution monochrome CMOS | High resolution color CMOS | |
| Resolution | High: 2927 x 2054, Standard: 1463 x 1027 | 2048 × 1536 | |
| File format | 16bit TIFF / 8 bit TIFF / BMP / JPEG | 16 bit TIFF. 8 bit TIFF BMP JPEG | |
| Lens | x6 Auto zoom lens (Iris. Zoom, Focus) | F1,4 12 mm Fixed focal lens | |
| Filter | 6 position, 595nm filter as standard (EtBr, EzFluoroStainDNA, SYBR Dye etc.) | Orange filter (50 mm) | |
| Exposure time | 5msec ~ 10 sec | 1 msec ~ 10 sec | |
| Dimension | 305 (W) x 620 (H) x 450 (D) mm | 340 (W) x 275 (D) x 437 (H) mm (onlv dark room) | |
| Weight | 28 kg | 9.0 kg (only dark room) | |
| Power | AC100-240 V | AC100V-240V 2A 50/60HZ (AC adapter) | |
| View the entire technical specifications in the brochure. | |||
Available Models
WSE-5300 Printgraph CMOSI is High resolution 6M pixels monochrome CMOS camera applied with touch panel control system. Touch panel interface is reflecting ATTO original knowhow which is closing user-friendly for 30 years sales. Detecting by UV light source which DNA(EtBr) and detection CBB pattern with white flat LED light source.
ATTO original「CyanRed Epi」is switchable LED light which are Cyan LED and Red LED. Cyan LED is available to detect a fluorescence in both blue and green wavelenth. Detetable EtBr which is difficult to detect in Blue LED. However, ATTO made its possible for UV free Gel Documentation System with CyanRed Epi.
Save an image to USB memory directly or print out immediately with UP-X898MD thermal printer.
Name is「Classic」but applied new technology!
WSE-5400 Printgraph Classic is High resolution 3M pixels color CMOS camera applied with independendent intouch panel contorl and connect with PC control.
- Detecting by UV light source which DNA(EtBr)and detection CBB pattern with ATTO original “Flat Viewer” white LED light source.
- Save an image to USB memory diretly.
- Connect with UP-X898MD thermal printer for direct print out immediately.
- Touch LCD system has sleep mode and you can restart it with sligh touching on screen.
Key Industries
- Biopharmaceutical and Biotechnology
- Education & Academics
- Medical
- Pharmaceutical

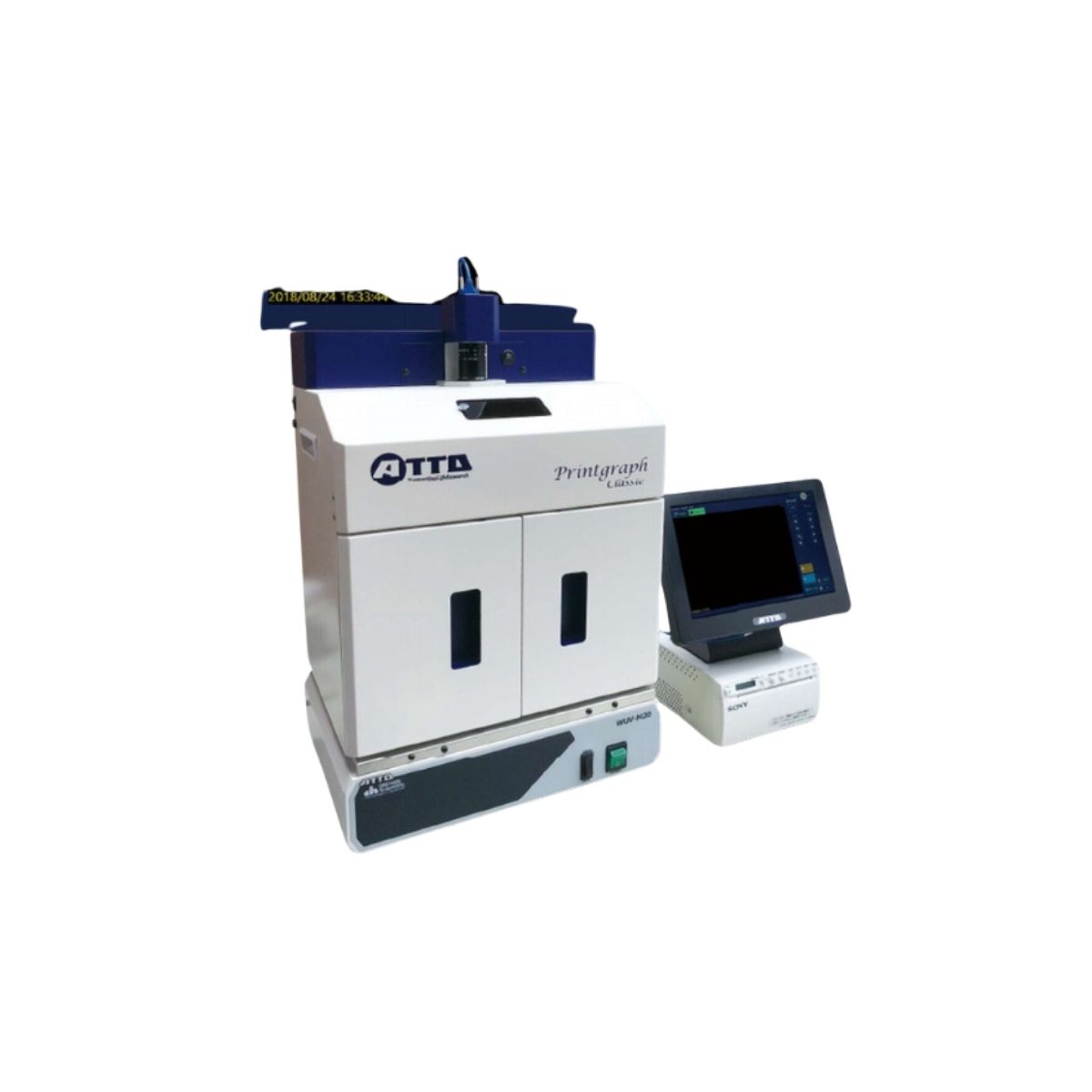

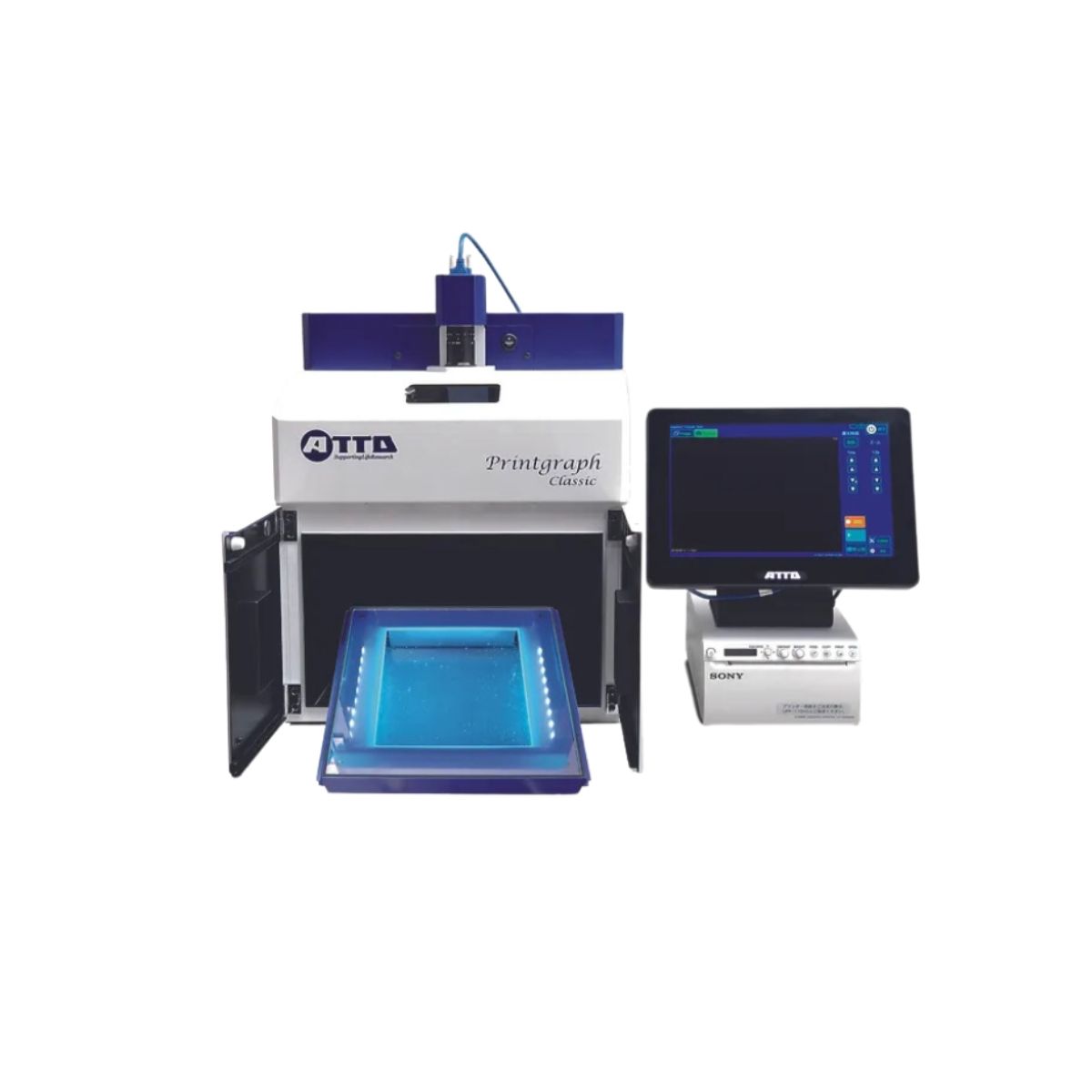

WSE-5400 Printgraph Classic
High resolution 3M pixels color CMOS camera applied with independendent intouch panel contorl and connect with PC control.
- Detecting by UV light source which DNA(EtBr)and detection CBB pattern with ATTO original “Flat Viewer” white LED light source.
- Save an image to USB memory diretly.
- Connect with UP-X898MD thermal printer for direct print out immediately.
- Touch LCD system has sleep mode and you can restart it with sligh touching on screen.
