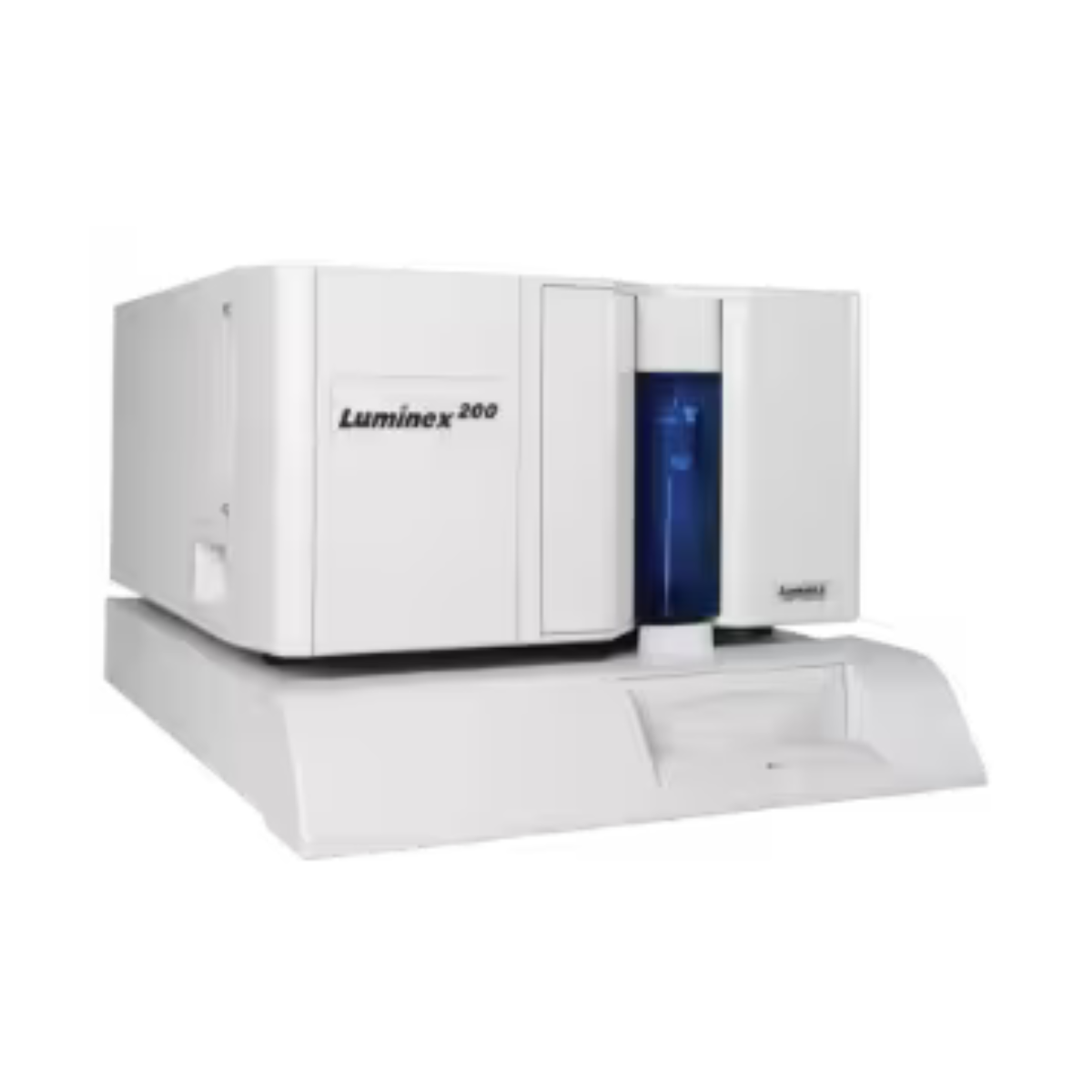

Bio-techne – Luminex® 200™
The Luminex 200 sets the standard for multiplexing. The ability to use either magnetic or polystyrene beads makes this instrument a popular choice for laboratories needing greater flexibility.
Technical Specifications
| Physical Dimensions | 3 cm (17 in.) W x 50.5 cm (20 in.) D x 24.5 cm (9.5 in.) H |
| Weight | 25 kg (60 lbs.) |
| Operating Temperature | 15° C to 30° C (59° F to 86° F) |
| Operating Humidity | 20% to 80%, non-condensing |
| Shipping and Storage Temperature | 0 to 50° C (32° F to 122° F) |
| Shipping and Storage Humidity | 20% to 80%, non-condensing |
| Altitude | Operation up to 2,400 m (7,874 ft.) above mean sea level |
| System Warmup Time | 30 min. Systems that remain inactive for at least four hours will require a warmup to restart the lasers. The system resets the four-hour internal clock after acquiring the sample, running system calibrators, running system controls, or warming up the instrument |
| System Initialization | < 45 min. (Including laser warmup and weekly calibration) |
| System Verification | 5 min. |
| Heater Operating Range | Maintains samples using the heater block at a constant temperature from 35° C to 55° C (95° F to 131° F), +/- 2° C of set point |
| Plate Run Time | 96-well in ≤ 45 min. |
Key Features
- Multiplexing: up to 100 analytes per sample volume (80 on MagPlex microspheres)
- Dynamic Range (Typical): >3.5 logs
- Read Time: 96-well plate in < 45 min (up to 12,800 tests/hour)
- Daily Start-Up/Shut-Down: < 30 min
