NEST – Cell Biology – BioFactory™

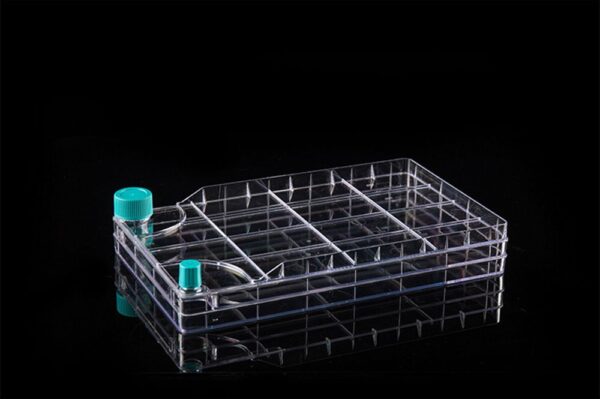

BioFactory™BioFactory™Nest BioFactory™ Systems are compact, multi-layer, single-use cell culture systems designed for easy scale-up cell culture applications, such as production of vaccines, monoclonal antibodies or pharmaceuticals.
Versatile, easy-to-use systems Nest BioFactory™ Systems are compact, multi-layer, single-use cell culture systems designed for easy scale-up cell culture applications, such as production of vaccines, monoclonal antibodies or pharmaceuticals. Versatile, easy-to-use systems for small scale research or commercial production with reduced contamination risk. Narrow mouth caps available for tubing solutions.
Key Features

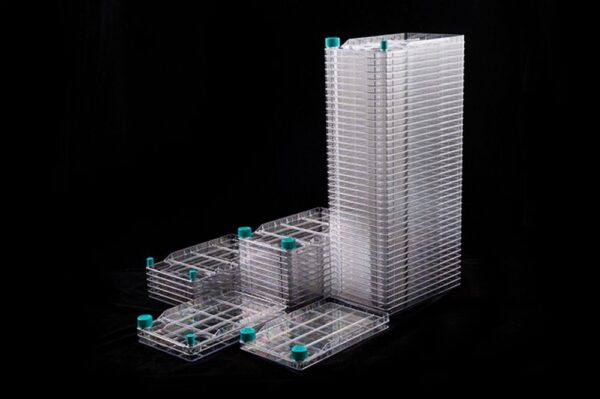

- Available in 1, 2, 5, 10, and 40-layer configurations.
- Offers double wide mouth vent caps or double narrow mouth caps.
- Cultivation areas range from 647 cm² to 25,295 cm².
Technical Specifications
| Cat. No. | Layer | Cap Style | Cultivation Area (cm²) | Qty/ Case |
|---|---|---|---|---|
| 771001 | 1 | Double wide mouth vent caps | 647 | 8 |
| 771101 | 2 | Double wide mouth vent caps | 1279 | 8 |
| 771204 | 5 | Double wide mouth vent caps | 3175 | 4 |
| 771302 | 10 | Double wide mouth vent caps | 6335 | 6 |
| 771403 | 40 | Double wide mouth vent caps | 25295 | 2 |
| 772001 | 1 | Double narrow mouth caps (one vent cap & one sealed cap) | 647 | 8 |
| 772101 | 2 | Double narrow mouth caps (one vent cap & one sealed cap) | 1279 | 8 |
| 772204 | 5 | Double narrow mouth caps (one vent cap & one sealed cap) | 3175 | 4 |
| 772302 | 10 | Double narrow mouth caps (one vent cap & one sealed cap) | 6335 | 6 |
| 772403 | 40 | Double narrow mouth caps (one vent cap & one sealed cap) | 25295 | 2 |
| 773001 | 1 | One wide mouth vent cap & one narrow mouth sealed caps | 647 | 8 |
| 773101 | 2 | One wide mouth vent cap & one narrow mouth sealed caps | 1279 | 8 |
| 773204 | 5 | One wide mouth vent cap & one narrow mouth sealed caps | 3175 | 4 |
| 773302 | 10 | One wide mouth vent cap & one narrow mouth sealed caps | 6335 | 6 |
| 773403 | 40 | One wide mouth vent cap & one narrow mouth sealed caps | 25295 | 2 |
